CHANGSHENG GEO-MATERIAL TECHNOLOGY CO. LTD.
Transportation Guide To SPCL Series Circular Loom
May 2010
Transportation Reference of Changsheng Circular Loom Series
|
Type |
Dimension of |
Weight |
Road Transport |
Ocean Shipping |
|

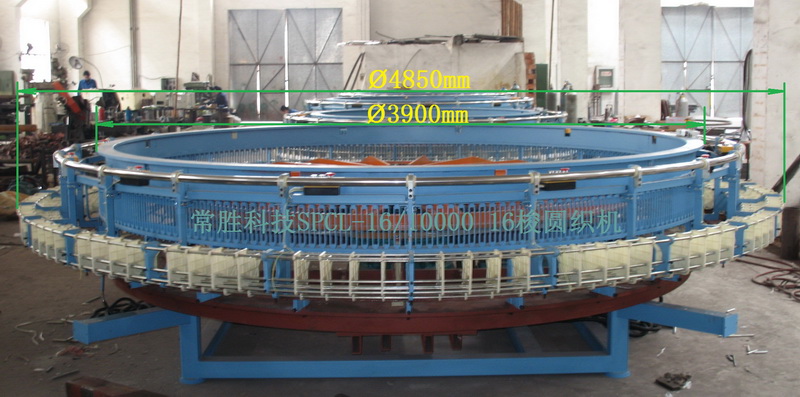

SPCL-16/10000 |
Diameter 3.9m |
18ton |
platform lorry(W3m,L16m) for one set(exceeding width), install on site |
one 20' Flat Rack and two 40'(40GP) std container for two sets, install on site |
|
SPCL-12/8000 |
Diameter 3.2m |
14ton |
platform lorry(W2.8-3m,L13m) for one set(exceeding width) |
two 40' (40HC) container for two sets, install on site |
|
SPCL-10/6800 |
Diameter 2.8m |
11ton |
semitrailer (W2.5m,L12.5m) for one set(exceeding width) |
one 40' (40HC) container for one sets, install on site |
|
SPCL-12/6000A |
Diameter 2.6m |
10ton |
semitrailer (W2.5m,L9.6m) for one set(exceeding width & length) |
one 40' (40HC) container for one sets, install on site |
|
SPCL-10/5400A |
Diameter 2.4m |
9ton |
semitrailer (W2.5m,L9.6m) for one set(exceeding width ) |
one 20' FR , one 40' (40HC) container for two sets, install on site |
|
SCL-8/5000A |
Diameter 2.2m |
8ton |
semitrailer (W2.5m,L9.6m) for one set(exceeding width ) |
one 20' FR , one 40' (40HC) container for two sets, install on site |
|
SPCL-8/4400A |
Diameter 2m |
7ton |
semitrailer (W2.5m,L8m) for one set(exceeding width ) |
one 20' FR for one set, install on site |
Typical Ocean Shipping

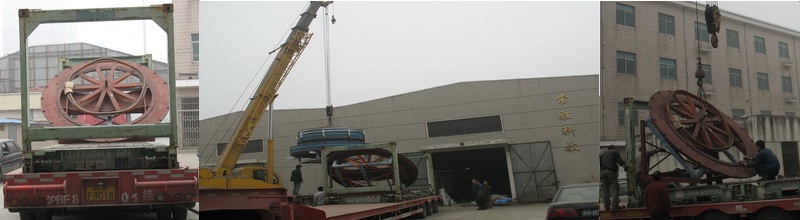

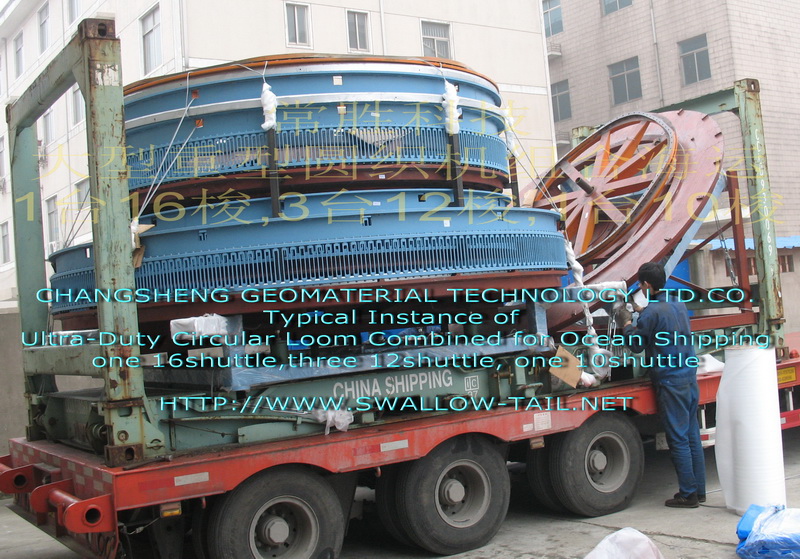

One set of SPCL-16/10000 16-shuttle circular loom , three sets of SPCL-12/8000 12-shuttle circular looms and one set of SPCL-10/6800 10-shuttle circular loom i.e. five sets of circular looms transported with one 22P1 (20' FR) , one 20GP (20' GC) and two 40FRs (40' FR). All big parts exceeding width loaded on flat rack , transport cost decreased at maximum. (check following picture for details)
